| item |
unit |
Data value of design |
| Machine model, name |
|

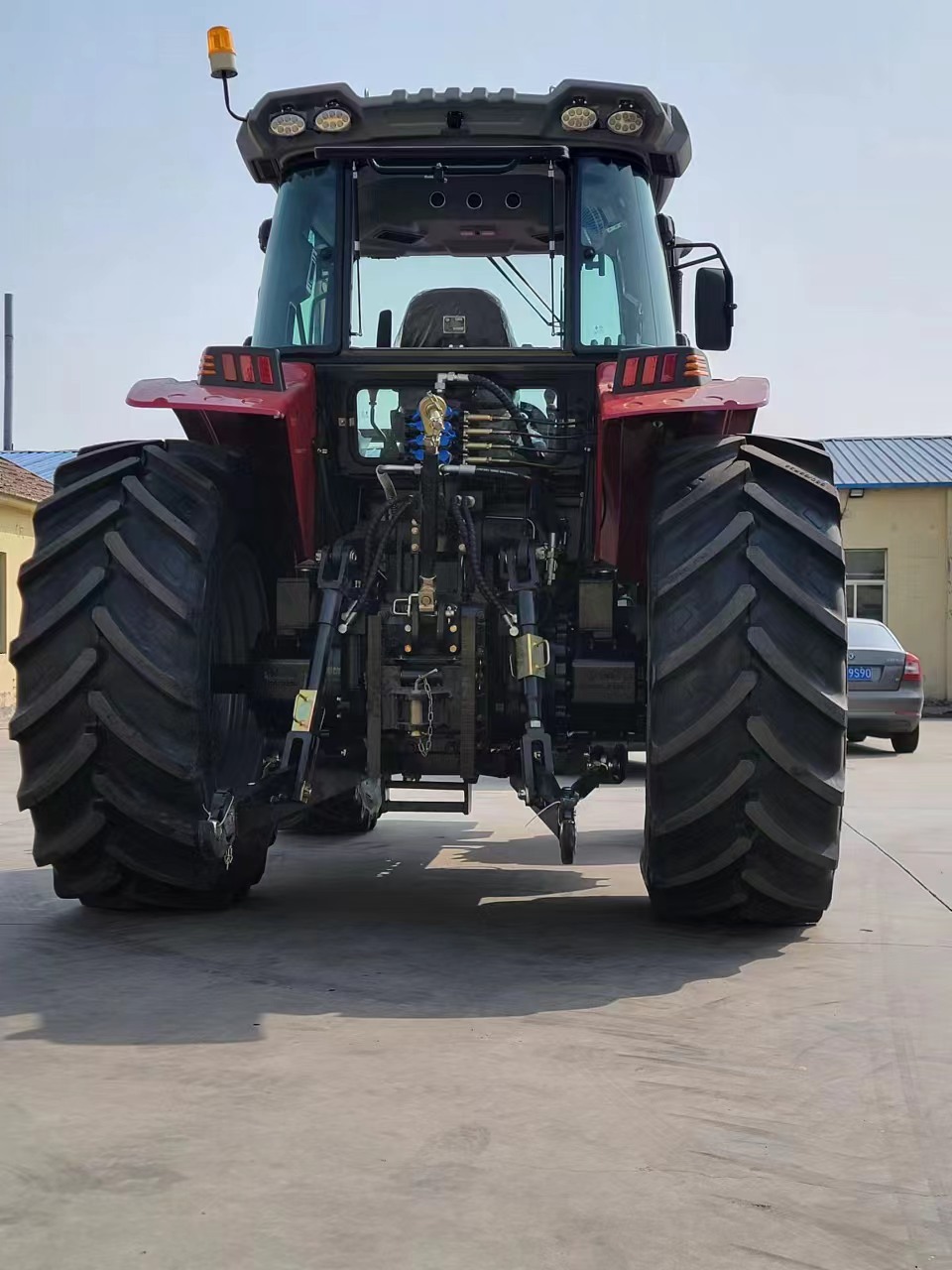

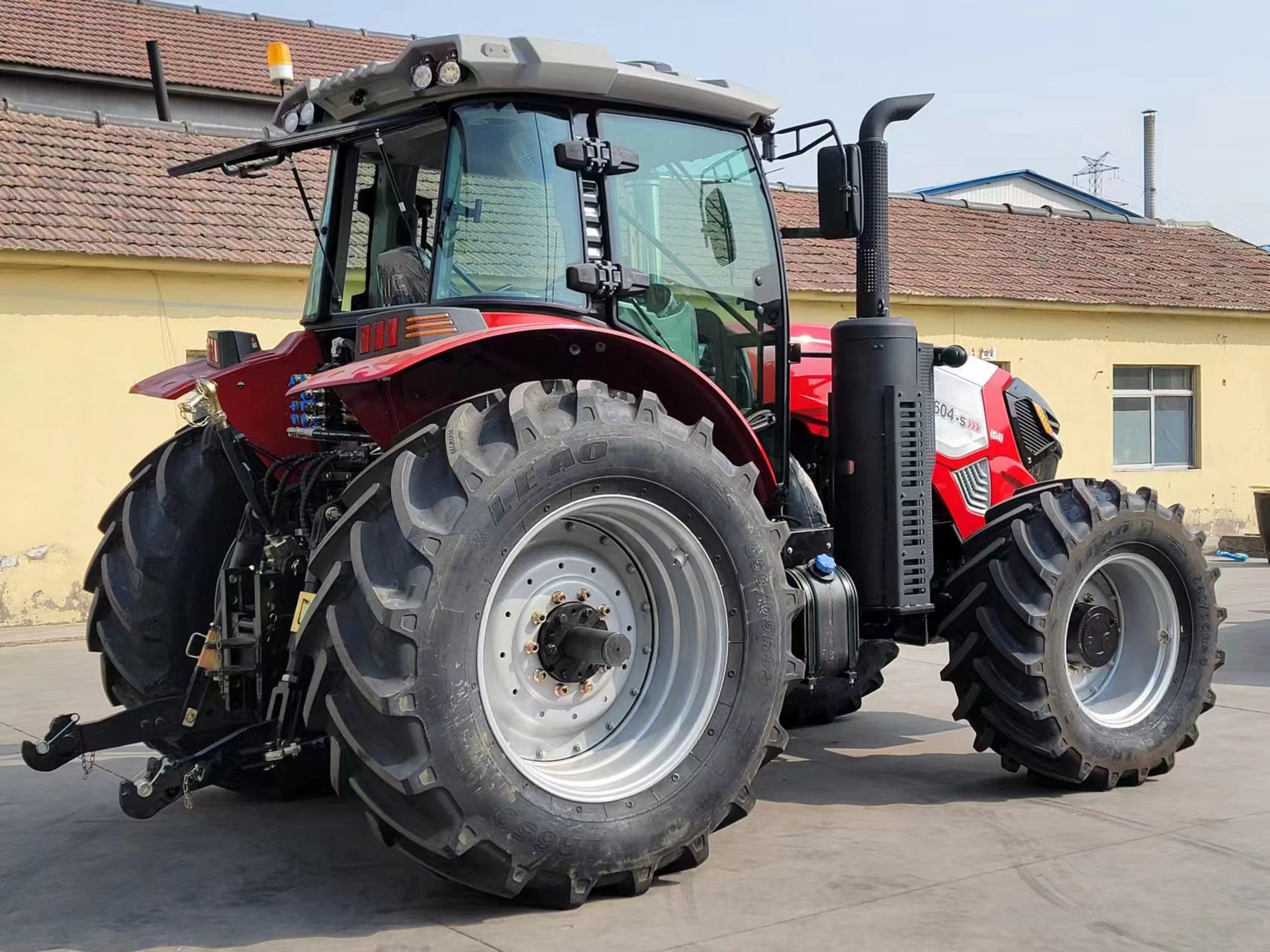

2604-S、wheel tractor |
| The outer dimension of the whole machine “Length × width × height and part” |
mm |
5580×2780×3200(single tire) |
| Wheelbase or track ground length |
mm |
2880 |
| Commonly used wheel gauge (front/rear wheel) or gauge |
mm |
1720、1820、2000、2100/1620～2350 |
| Wheel gauge (front/rear) or gauge |
mm |
2000/1900 |
| Minimum ground clearance and position |
mm |
440(under rear axle) |
| The horizontal distance between the front end face of the clutch housing and the axis line of the rear drive shaft |
mm |
1420 |
| Transmission gear pair shaft hole center distance |
mm |
125 |
| Minimum working weight |
kg |
7900 |
| Standard weight (front/rear) |
kg |
900/720 |
| Minimum service specific mass |
kg/kW |
41.3 |
| Number of gears |
/ |
16/16 |
| Main gear |
|
4 |
| Sub gear |
/ |
4×(1+1) |
| Maximum design theoretical speed |
km/h |
31.14 |
