| item |
unit |
Data value of design |
| Machine model, name |
|

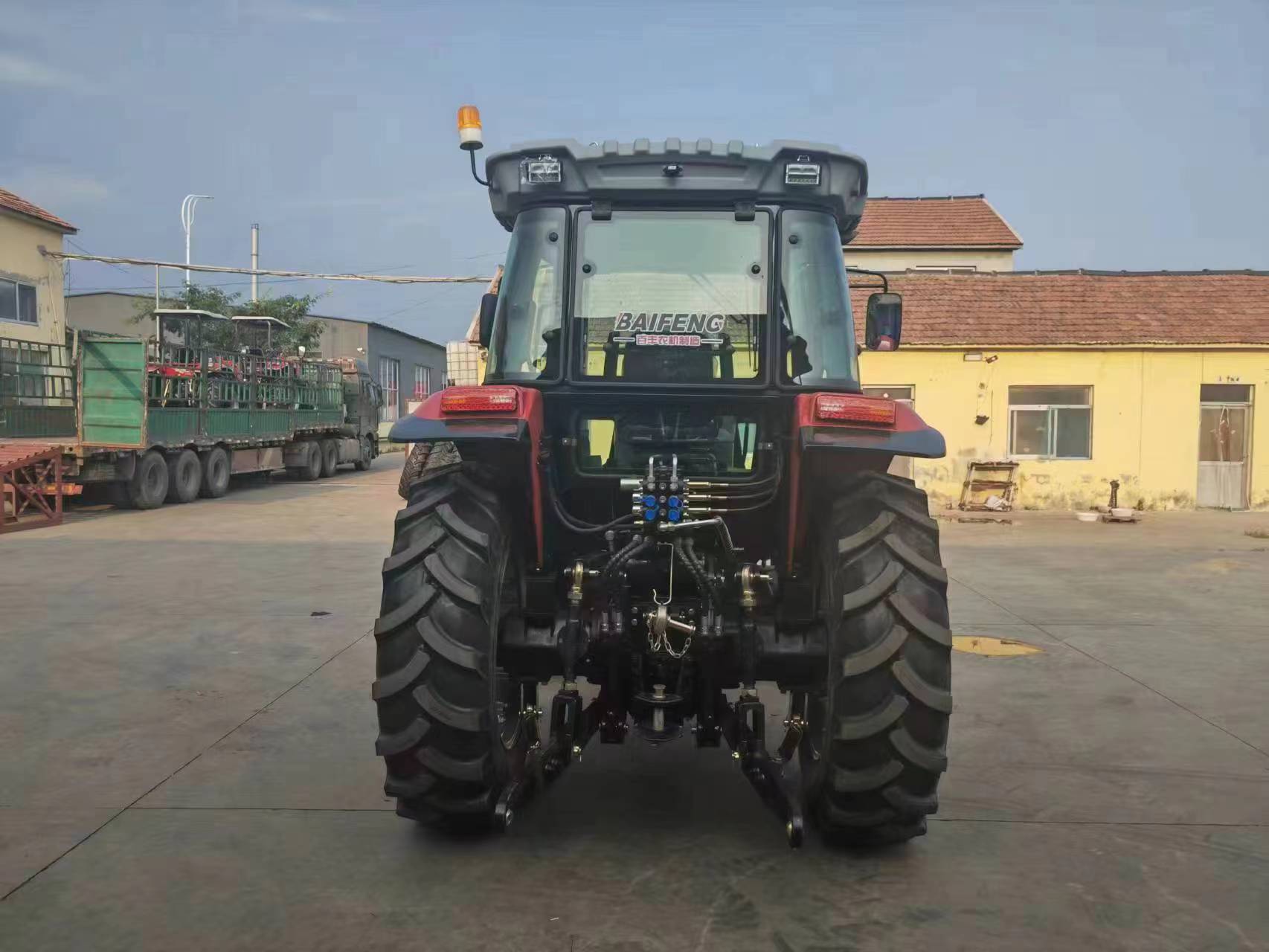

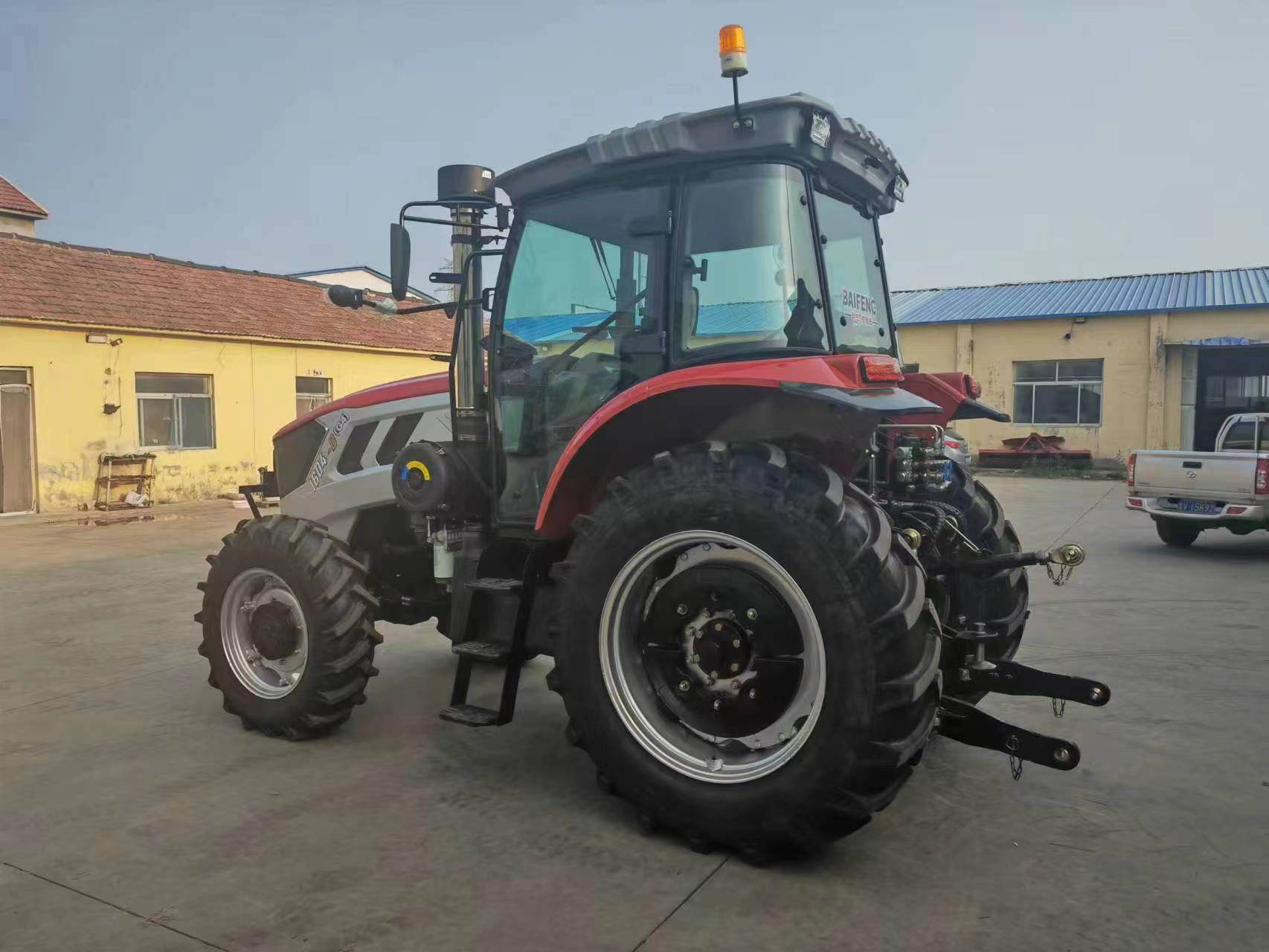

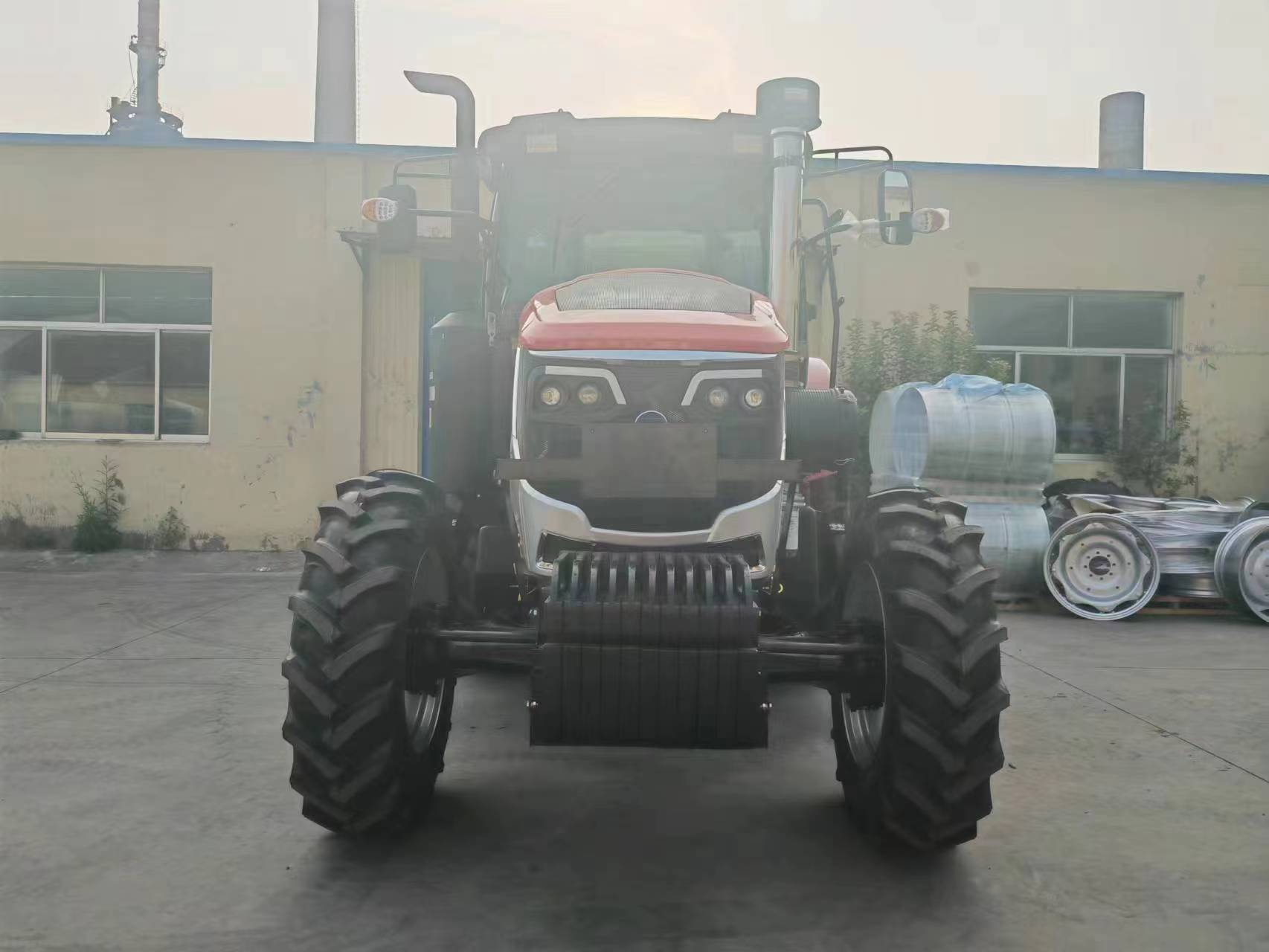

1604-D、wheel tractor |
| The outer dimension of the whole machine “Length × width × heigh |
mm |
5020×2125×2810（until
Top cab） |
| Wheelbase or track ground length |
mm |
2620 |
| Commonly used wheel gauge (front/rear wheel) or gauge |
mm |
1630、1750、1850、1950/1620-2420 |
| Wheel gauge (front/rear) or gauge |
mm |
1810/1750 |
| Minimum ground clearance and position |
mm |
390(Front axle drain plug) |
| The horizontal distance between the front end face of the clutch housing and the axis line of the rear drive shaft |
mm |
1315 |
| Transmission gear pair shaft hole center distance |
mm |
118 |
| Minimum working weight |
kg |
4830 |
| Standard weight (front/rear) |
kg |
440/180 |
| Number of gears |
/ |
16/8 |
| Main gear |
|
4 |
| Sub gear |
/ |
(2+1)×2 |
| Maximum design theoretical speed |
km/h |
33.7 |
| Engine and main clutch connection mode |
/ |
direct connection |
